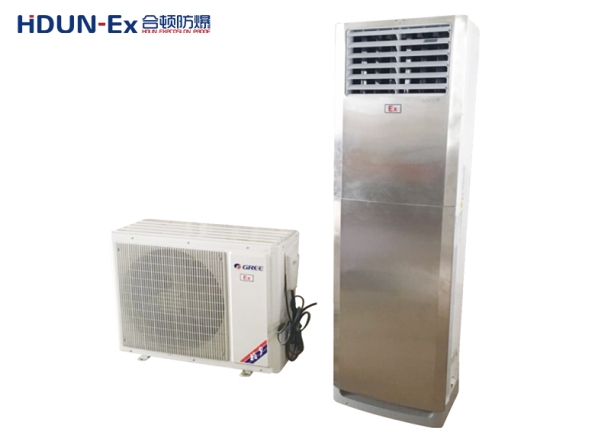

防爆空调 - 型号HDK□R - 浙江合顿防爆科技有限公司

1、适用于环境温度：-20℃～+40℃；

2、适用于爆炸性气体混合物危险场所：1区、2区；

3、适用于石油开采、炼油、化工、军工、海洋石油平台、油轮、金属加工等危险环境；

4、作为车间、控制室、实验室等场调节温度用；

5、执行标准：GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.4、GB/T 3836.8、GB/T 3836.9、IEC 60079-0、IEC 60079-1、

IEC 60079-7、IEC 60079-11、IEC60079-15、IEC 60079-18。

1.Suitable for ambient temperature: -20℃～+40℃;

2.Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;

3.Suitable for hazardous environments such as petroleum exploitation, refining, chemical industry, military industry, offshore oil platforms, oil tankers, metal processing, etc.

4.As a workshop, control room, laboratory and other fields to regulate temperature;

5.Implementation standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.4, GB/T 3836.8, GB/T 3836.9, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-11, IEC 60079-15, IEC 60079-18.

1、防爆空调是我公司在普通空调基础上进行防爆处理而制成的，防爆性能可靠，对原空调性能无影响。

2、防爆空调按结构形式可分为：分体挂壁式和落地式，按功能可分为：单冷型和冷暖型。

3、防爆空调管路连接和普通空调一致，电气连接一定要按防爆电器安装工艺要求，先将电源引入防爆控制箱，再从防爆控制箱分别引入到

室内机和室外机。

4、防爆控制箱中已配电源开关。

5、钢管或电缆布线均可。

1.Explosion-proof air-conditioning is made by our company on the basis of ordinary air-conditioning. Its explosion-proof performance is reliable and has no effect on the performance of the original air-conditioning.

2.Explosion-proof air-conditioning can be divided into hanging type and cabinet type according to its structure, and single-cold type and cold-warm type according to its function.

3.The connection of explosion-proof air-conditioning pipeline is the same as that of ordinary air-conditioning. The electrical connection must be in accordance with the installation process requirements of explosion-proof electrical appliances. First, the power supply is introduced into the explosion-proof control box, and then the explosion-proof control box is introduced into the indoor and outdoor units respectively.

4.The power switch has been distributed in the explosion-proof control box.

5.Steel pipe or cable wiring is acceptable.

站点名称

处理方案 Treatment scheme

分体式防爆空调处理

1、挂壁式防爆空调、落地式防爆空调主要是在普通空调的基础上，对室外机和室内机分别进行防爆处理，具体如下：

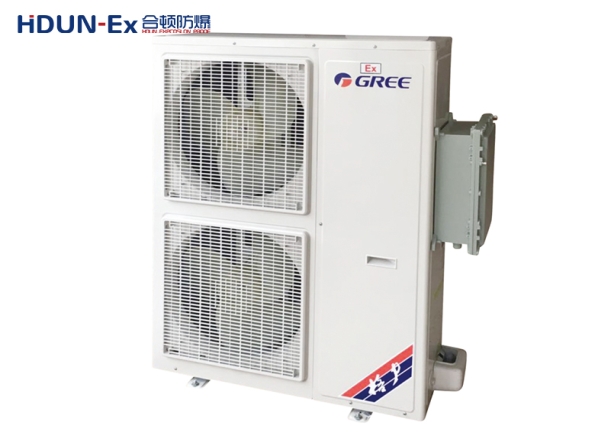

（1）室外机：主要是采用特殊工艺处理方法和制造方法对内部电器控制部分、压缩机、室外风机、保护系统、散热系统、制冷系统进行防

爆处理，其外形尺寸与普通挂式空调外机的外形尺寸相同，其安装方式

也与普通挂式空调的外机相同。

（2）室内机：主要是采用特殊工艺处理方法和制造方法对内部电器控制部分分解后，重新进行防爆设计、制造处理、形成独立的防爆控制

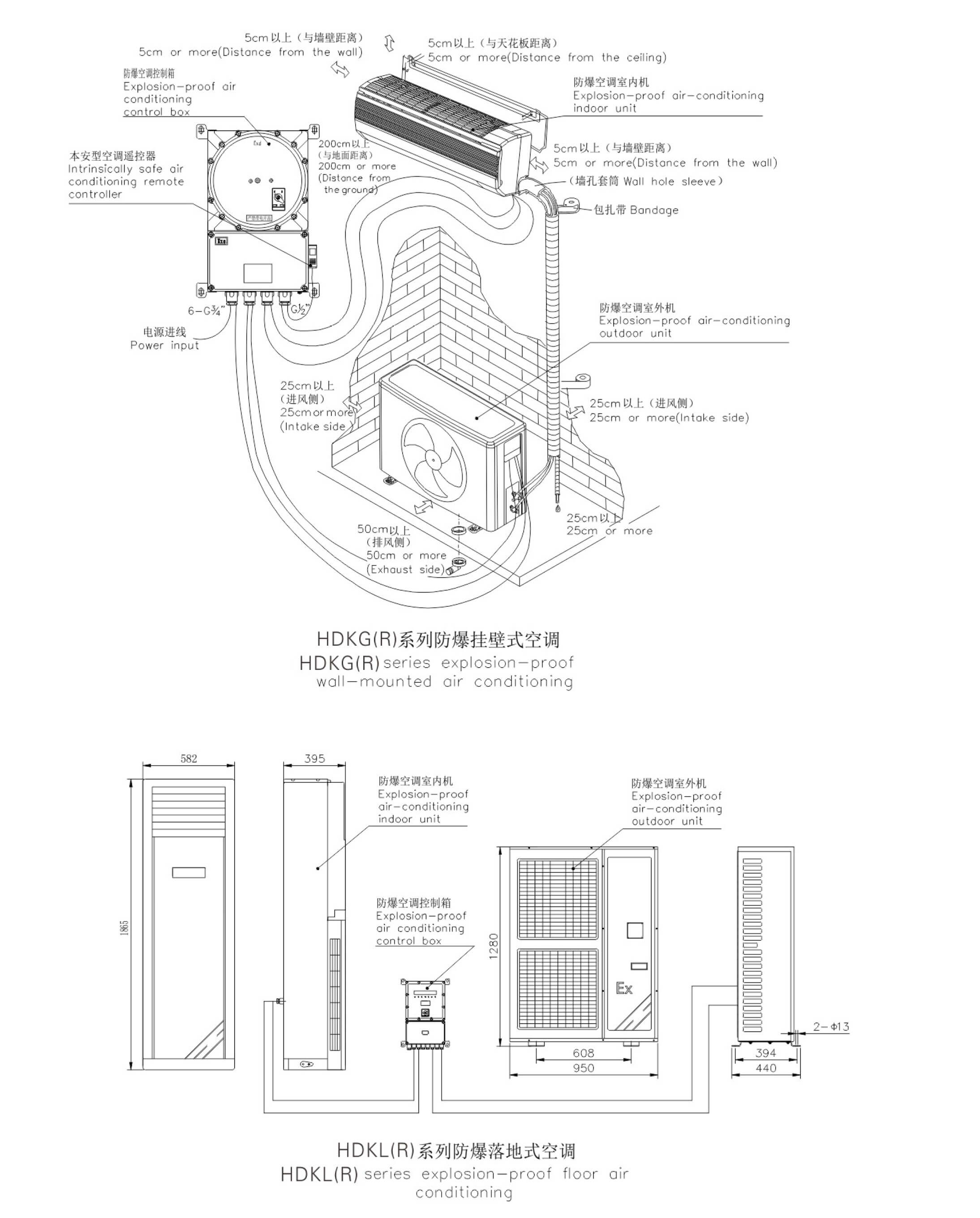

箱，并实现手动控制功能，其挂机外形尺寸与普通挂式内机的外形尺寸相同，其安装方式也相同。但防爆室内机增加了一个挂式安装的防

爆控制箱，其外形尺寸见图。

2、防爆室内机和室外机外面采用了多种防爆形式，弱电控制部分采用了本安防爆电路。

Separate Explosion-proof Air Conditioning Treatment

1.The wall-mounted explosion-proof air conditioning and floor-mounted explosion-proof air conditioning mainly deal with the explosion-proof treatment of outdoor and indoor units on the basis of common air conditioning, as follows:

(1)Outdoor units: The explosion-proof treatment is mainly carried out on the internal electrical control part, compressor, outdoor fan, protection system, heat dissipation system and refrigeration system by using special processing methods and manufacturing methods. Its shape size is the same as that of the ordinary hanging air-conditioner, and its installation mode is the same as that of the ordinary hanging air-conditioner.

(2)Indoor machine: After decomposing the control part of internal electrical appliances with special processing and manufacturing methods, the explosion-proof design, manufacturing processing, forming an independent explosion-proof control box and realizing the manual control function are carried out. The external dimensions of the hanging machine are the same as those of the ordinary hanging machine, and its installation mode is the same. However, an explosion-proof control box with hanging installation has been added to the explosion-proof indoor machine. Its shape and size are shown in the figure.

2.A variety of explosion-proof modes are adopted outside the explosion-proof indoor and outdoor machines. The intrinsic safety explosion-proof circuit is adopted in the weak current control part.

防爆空调
