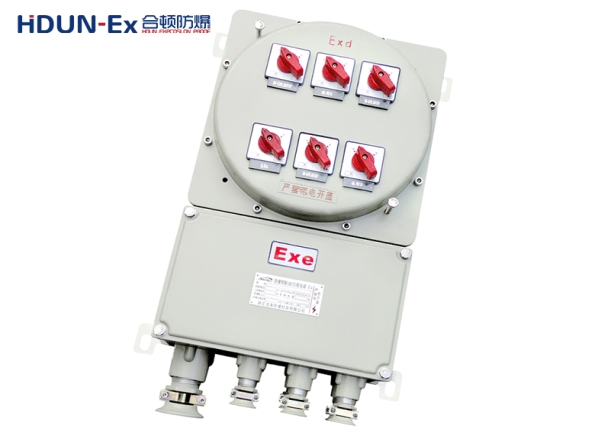

防爆照明(动力检修)配电箱 - 型号BXM(D/X) - 浙江合顿防爆科技有限公司

1、适用于环境温度：-20℃～+40℃；

2、适用于爆炸性气体混合物危险场所：1区、2区；

3、适用于可燃性粉尘场所：21区、22区；

4、适用于石油开采、炼油、化工、军工、海洋石油平台、油轮、军工、金属加工等危险环境场所；

5、执行标准：GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 61241-0、IEC 61241-1。

1.Suitable for ambient temperature: -20℃～+40℃;

2.Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;

3.Suitable for combustible dust places: 21 and 22 districts;

4.Suitable for dangerous environment places such as petroleum exploitation, refining, chemical industry, military industry, offshore oil platform, oil tanker, military industry, metal processing, etc.

5.Implementation standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1.

1、铝合金压铸外壳，高速喷丸处理后，表面高压静电喷塑，耐腐蚀、抗老化。

2、不锈钢外露紧固件，防腐性能高。

3、本系列产品整体为复合型结构，开关箱采用隔爆型结构，过线箱及出线箱采用增安型结构。

4、新型操作机构，结构简洁合理，通用性强，操作方便。

5、开关手柄常规为PC材质，也可根据用户要求制成金属材质，总开关和分开关操作面板可根据颜色来区分，开关手柄可配置挂锁，防止误操作。

6、可根据用户要求内装断路器、交流接触器、热继电器、浪涌保护器、万能转换开关、熔断器、互感器、电表等电器元件。

7、各回路均配有电源接通信号指示灯。

8、密封条采用线浇发泡一次成形先进工艺，具有高防护性能。

9、立式安装配相应的安装支架，户外使用可加装防雨罩或防护柜，材质可根据用户要求定制。

10、钢管或电缆布线均可。

1、Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.

2、Stainless steel exposed fasteners, high corrosion resistance.

3、The whole series of products are of composite structure. The switch box adopts flameproof structure, and the overhead box and outlet box adopt Safety-increasing structure.

4、The new patent operation mechanism has the advantages of simple and reasonable structure, strong versatility and convenient operation.

5、Switch handle is usually made of PC material or metal material according to user's requirements. The main switch and sub-switch operation panel can be distinguished by color. The switch handle can be configured with padlock to prevent misoperation.

6、It can be equipped with circuit breakers, AC contactors, thermal relays, surge protectors, universal switch, fuses, transformers, meters and other electrical components according to user requirements.

7、Each circuit is equipped with a power-on signal indicator.

8、The sealing strip adopts the advanced one-time forming process of line casting and foaming, which has high protective performance.

9、Vertical installation with corresponding installation bracket, outdoor use can be installed with rain shield or protective cabinet, material can be customized according to user requirements.

10、Steel pipe or cable wiring is acceptable.
