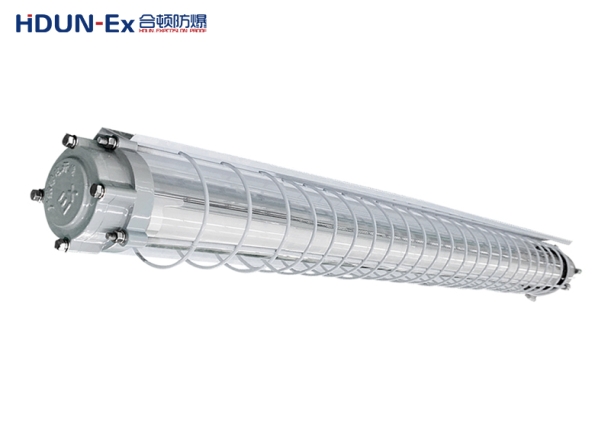

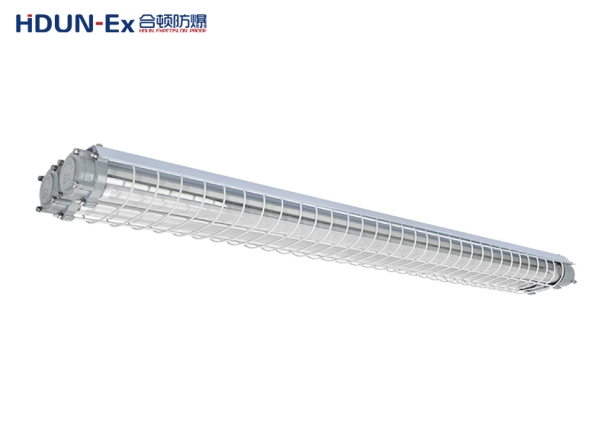

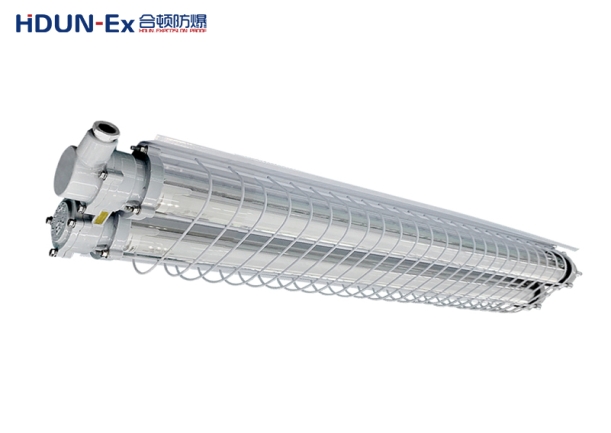

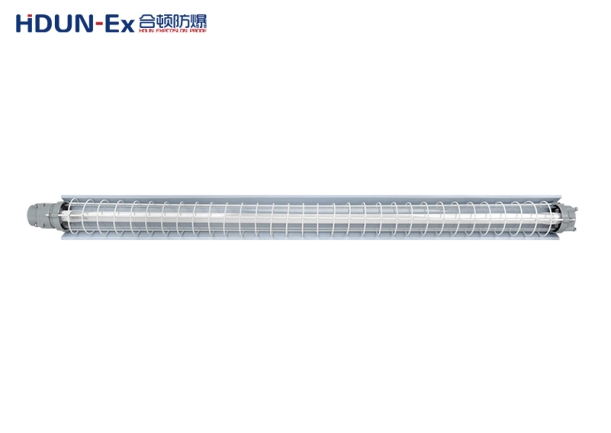

防爆防腐LED荧光灯 - 型号HDNY-PY - 浙江合顿防爆科技有限公司

1、适用于环境温度:-20℃～+40℃；

2、适用于爆炸性气体混合物危险场所:1区、2区；

3、适用于可燃性粉尘场所:21区、22区；

4、适用于石油开采、炼油、化工、军工等危险环境作工作及场景照明之用；

5、执行标准:GB/T 3836.1、GB/T 3836.2、IEC 60079-0、IEC 60079-1、IEC 61241-0、IEC 61241-1。

1.Suitable for ambient temperature: -20℃～+40℃;

2.Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;

3.Suitable for combustible dust places: 21 and 22 districts;

4.It is suitable for working in dangerous environment such as petroleum exploitation, refining, chemical industry, military industry and

scene lighting;

5.Implementation standards: GB/T 3836.1, GB/T 3836.2, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1.

1、铝合金压铸外壳，高速喷丸处理后，表面高压静电喷塑，耐腐蚀、抗老化。

2、不锈钢外露紧固件，防腐性能高。

3、高强度钢化玻璃透明管，透光率高，通过严格的冲击试验，热剧变试验，防爆性能可靠。

4、设格栅型防护网罩，采用优质碳素钢镀锌后表面喷塑，双重防腐。

5、配知名品牌荧光灯管，寿命长、光效高。

6、灯具内设有接线腔，并有专用接线端子，用户安装时可直接进行，不必另设接线盒，方便快捷。

7、模块化插装式设计，只需松开端盖，抽出芯体即可更换灯管。

8、LED系列光源采用最新一代免维护节能LED灯管，具有寿命长、长期免维护、高效节能、宽电压范围等特点。

9、可根据用户要求配装应急装置，当供电电源断电时，灯具自动切换到应急照明状态。

10、钢管或电缆布线均可。

1.Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.

2.Stainless steel exposed fasteners, high corrosion resistance.

3.High strength toughened glass transparent tube, high transmittance, through strict impact test, thermal drastic change test, explosion-proof performance is reliable.

4.A grille-type protective net cover is set up. The surface of galvanized high-quality carbon steel is sprayed with plastic and double anti-corrosion.

5.Equipped with well-known brand fluorescent lamp tube, long life and high light efficiency.

6.There is a wiring chamber and a special wiring terminal in the lamp. It can be installed directly by the user without setting another wiring box, which is convenient and fast.

7.Modular cartridge design, only need to loosen the end cover, pull out the core body can replace the lamp tube.

8.LED series light source adopts the latest generation of maintenance-free energy-saving LED lamp tube, which has the characteristics of long life, long-term maintenance-free, high efficiency, energy saving, wide voltage range and so on.

9.Emergency devices can be equipped according to user requirements, and when the power supply is cut off, the lamps will automatically switch to the emergency lighting state.

10.Steel pipe or cable wiring is acceptable.
