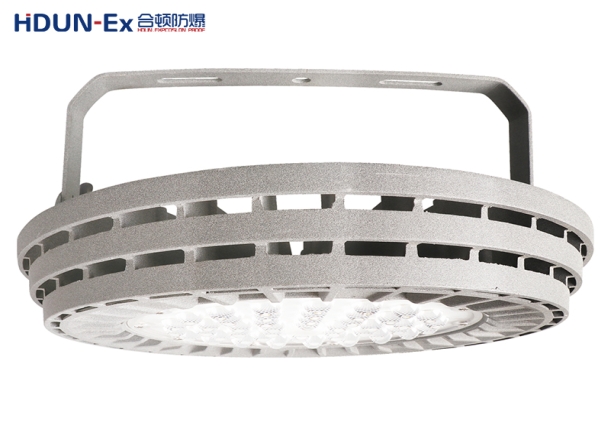

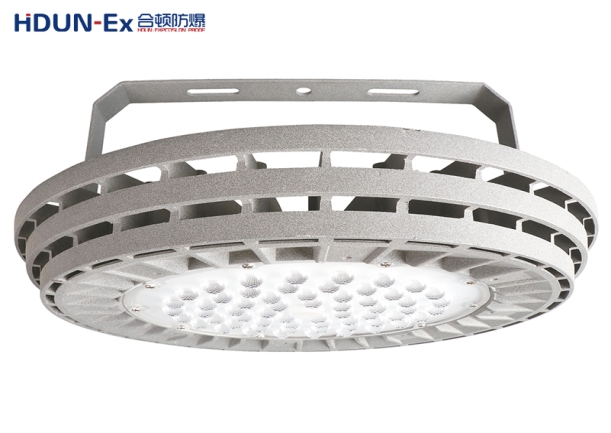

防水防尘防腐LED灯 - 型号HDN - 浙江合顿防爆科技有限公司

1、适用于环境温度：-30℃～+55℃；

2、抗电压波动范围AC135V～AC265V；

3、安装高度不超过海拔2000m；

4、周围空气相对湿度不大于96％(+25℃时)；

5、适用于酸、碱、盐、氨、氯离子腐蚀，多水、多尘、潮湿等环境；

6、广泛用于码头、广场、场馆及钢铁、制药、铁路等工矿企业作固定照明。

1.Suitable for ambient temperature: -30℃～+55℃;

2.The range of anti-voltage fluctuation is AC135V～AC265V;

3.Installation height should not exceed 2000m above sea level;

4.Relative humidity of ambient air is not more than 96%(+25℃);

5.Suitable for acid, alkali, salt, ammonia, chloride ion corrosion, water, dust, humidity and other environments;

6.It is widely used for fixed lighting in wharfs, squares, venues and industrial and mining enterprises such as iron and steel, pharmaceuticals and railways.

站点名称

1、铝合金压铸外壳，高速喷丸处理后，表面高压静电喷塑，耐腐蚀、抗老化。

2、不锈钢外露紧固件，防腐性能高。

3、计算机模拟配光设计，采用光学级透镜材料，透光率高。

4、全封胶外挂电源，宽电压输入，防护性能高，自然风冷，能及时有效散发热量，确保灯具长寿命工作。

5、新型节能环保LED光源，光衰小，寿命长达10万小时；

6、特制恒流电源，功耗低，输出功率恒定，具有开路、短路、过热保护功能，功率因数高达0.9以上；

7、简洁的工业灯具外观设计，自带安装支架和角度调节装置，灯光照射方向可调，安装便利。

8、钢管或电缆布线均可。

1.Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.

2.Stainless steel exposed fasteners, high corrosion resistance.

3. Computer simulation of light distribution design, using optical lens material, high transmittance.

4. Full-sealed glue external power supply, wide voltage input, high protection performance, natural air-cooling, timely and effective heat dissipation, to ensure long life of lamps and lanterns.

5. The new energy-saving and environmental protection LED light source has small light decay and long life of 100,000 hours.

6. Special constant current power supply, low power consumption, constant output power, with open circuit, short circuit, overheating protection function, power factor up to 0.9 or more;

7.Simple industrial lamp appearance design, self-contained installation bracket and angle adjustment device, light illumination direction adjustable, easy installation.

8. Steel pipe or cable wiring is acceptable.
